2XURM70 Coaxial Cable + 2X1P2.5 Power Cable + 2X1PX22AWG Screened Twisted Pair Cable SWB

LSZH Sheathed Composite Cable

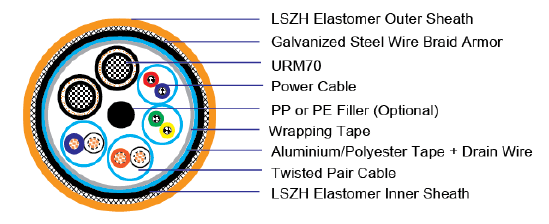

Construction:

2XURM70 Coaxial Cable + 2X1P2.5 Power Cable + 2X1PX22AWG Screened Twisted Pair Cable SWB

2XURM70 75Ohm Coaxial Cable

Conductor

7/0.2mm Stranded bare or tinned copper conductor, φ 0.6 mm ± 0.02 mm

Insulation

Polyethylene. φ 3.25 mm ± 0.15 mm

Screen

Copper wire braid, coverage 91 % ± 4 %

Sheath

Black LSZH. Nominal overall diameter 5.8 mm ± 0.25 mm

2X1P2.5mm² Power Cable 300V

Conductor

2.5mm² Stranded bare or tinned copper conductor

Insulation

0.6mm LSZH, Red/Blue & Green/Yellow

Screen

Aluminum/polyester tape with 0.5mm² tinned copper drain wire

2X1P22AWG Screened Twisted Pair Cable (Belden 8723 Equivelant)

Conductor

7/0.254mm Stranded bare or tinned copper conductor

Insulation

0.23mm PP, White/Blue & White/Orange

Screen

Aluminum/polyester tape with 24AWG tinned copper drain wire

Element Assembly

Filler

PE or PP material if necessary

Wrapping Tape

Polyester tape or woven tape

Screen

Aluminum/polyester tape with 0.5mm² tinned copper drain wire

Inner Sheath

1.0mm Black LSZH

Armor

0.3mm Galvanized steel wire braid, coverage 85%

Outer Sheath

1.5mm LSZH, nominal overall diameter 25.0 mm ± 2.0 mm

Sheath Color

Orange. Other color available as per requested

Electrical and Physical Properties@20°C:

Coaxial Cable

Max. Conductor Resistance @ 20°C : 92 Ω/km

Impedance: 75±5Ohm (@1MHz)

Max. Attenuation: 15.2dB/100m @100MHz

Power Cable

Conductor Resistance @ 20°C: 7.41Ohm/km

Min. Insulation Resistance: 10 MOhmxkm

Screened Twisted Pair Cable

Electrical Resistance: 49Ohm/km

Min. Insulation Resistance: 1000 MOhmxkm
